2762A Terminal Printer GE Terminet 300


HP 2762A terminal

General Electric Terminet 300

Some HP equipment sites found researching this (not all have terminal info)

http://www.kennethkuhn.com/hpmuseum/

http://www.hpmuseum.net/display_item.php?hw=334

Documentation on hpmuseum site

http://www.hpmuseum.net/exhibit.php?hwdoc=334

Service manuals:  Bitsavers, thanks Al for these, also thanks Pierre for his scanning

http://bitsavers.trailing-edge.com/pdf/ge/terminet/








Some views of the beast.








keyboard view


Platten



Data Connection


Overall.  Missing paper holding rod, paper.

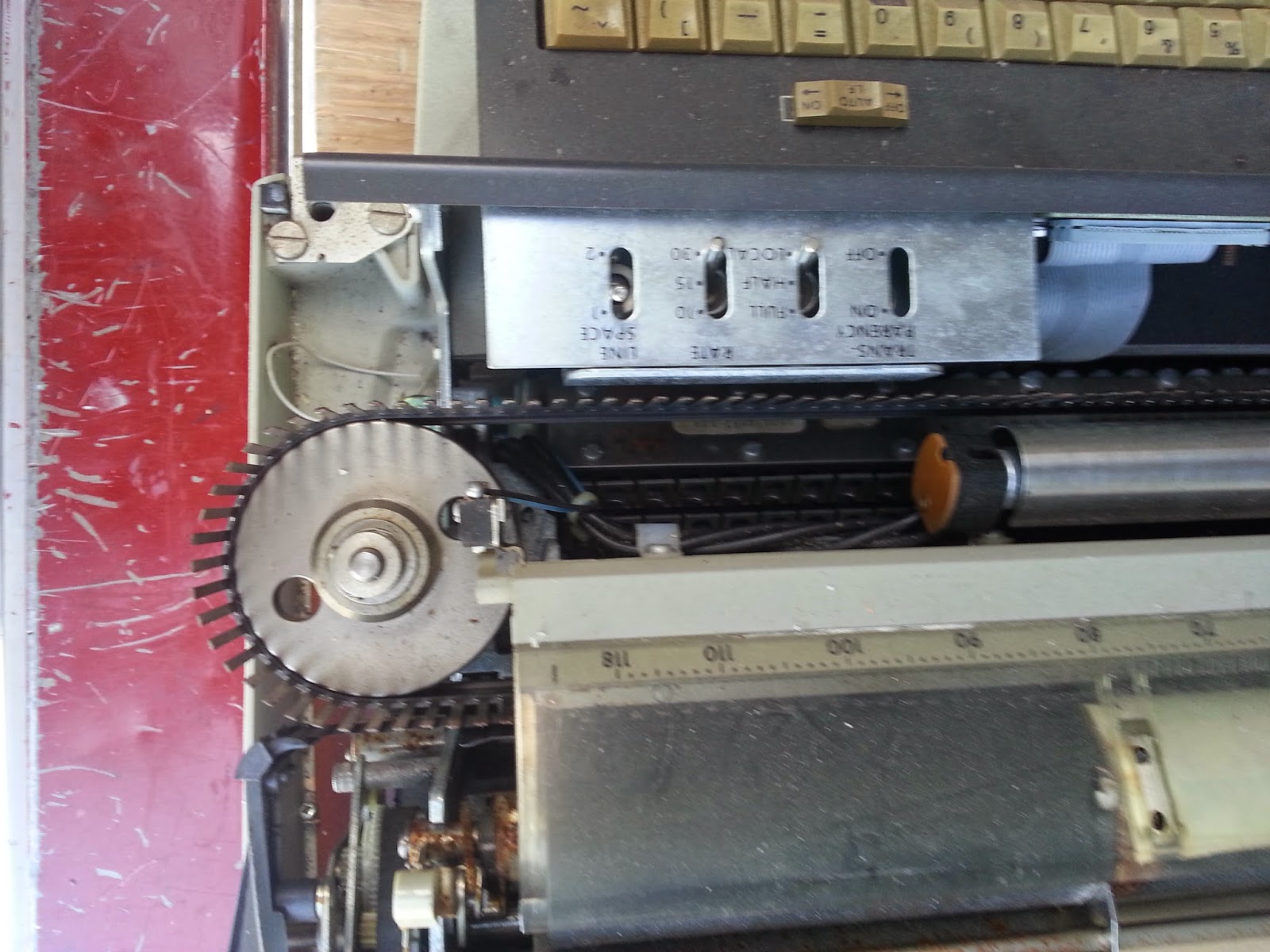

Option Switches:

Line Space 1, 2
Rate 100,150,300
Full Half Local (duplex setting)
Transparency On / Off not populated on this unit.



Print band, showing some letters


Ribbon on right side


Paper cavity, Heatsink for motor drivers.



Paper path sticker

Ribbon installation sticker


Left ribbon spool


Accessory for Reader / Punch.  The Terminet could be used for Telex, and paper tape in / out was a usual accessory for document preparation and recording for Telex.



Some boards in the card cage, left side of cage


Some boards on the right side of the cage


----------------
HEWLETT PACKARD
9500B-A68
1432A00122
LSi PN 457450-01
-----------------

-----------------
Line
117V +- 10%
2 Amps @ 60hz
-----------------


Auto LF on / off switch, right, above keyboard.


All Caps on / off switch, left above keyboard

Status indicators
Local
Standby
Online
Ready
Interrupt
Alarm






Computer World note, September 1973, early offering.

Tester unit for Terminet 1200 (acquired from ebay auction 4/30/2015)
